BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge

BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge
BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge
اطلاعات پایه
مقدار حداقل تعداد سفارش: 1
قیمت: 80
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
شماره مدل: BPZ2008 دامنه اندازه گیری: اندازه گیری فشار پایین
تایپ کنید: فشار سنج عمومی دقت: 0.25
نمایش: دیجیتالی برنامه: صنعتی
ساختار: فشار سنج ستون مایع نوع اتصال: نخ
تابع: نوع نشانه ی محلی، کنترل شده با سیگنال الکتریکی ساخت نصب: نصب مستقیم
ویژگی های محیط اندازه گیری: فشار سنج عمومی نشان دهنده مرجع فشار: فشار سنج
قدرت: باتری 9 ولت ماده پوسته: 304S.S و پلاستیک
نخ: G1/2 و غیره نمایش ارزش: فشار
بسته حمل و نقل: کارتن مشخصات: 10kpa ~ 100Mpa
علامت تجاری: "هنگتونگ" مبدا: چین
کد Hs: 80328100 ظرفیت تولید: 50000PCS/سال
برجسته کردن:

BPZ2008 differential pressure transmitter,9V battery powered pressure gauge,pressure transmitter sensor with warranty

,

9V battery powered pressure gauge

,

pressure transmitter sensor with warranty

توضیحات محصول


BPZ2008 DifferentiaL Pressure Transmitter Gauge Within 9V battery Powered
BPZ2008 Differential Pressure Transmitter gauge

Introduction:

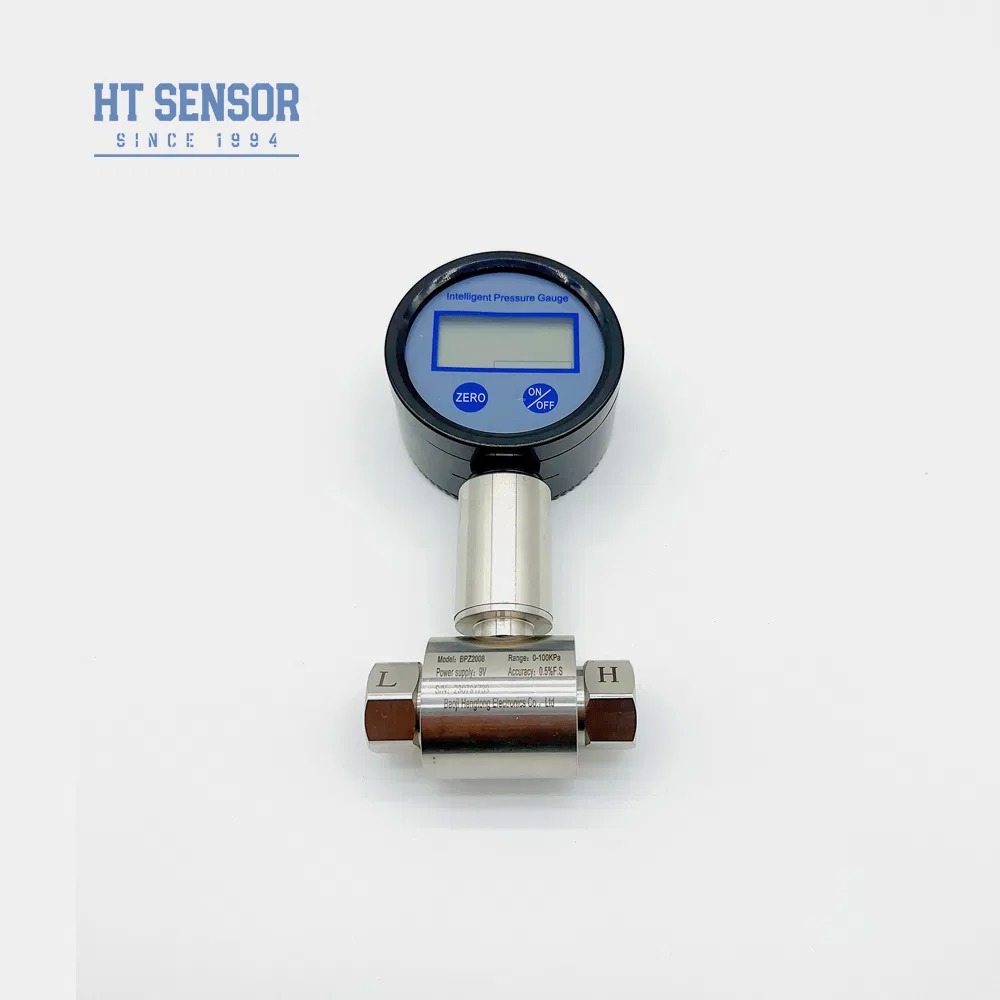

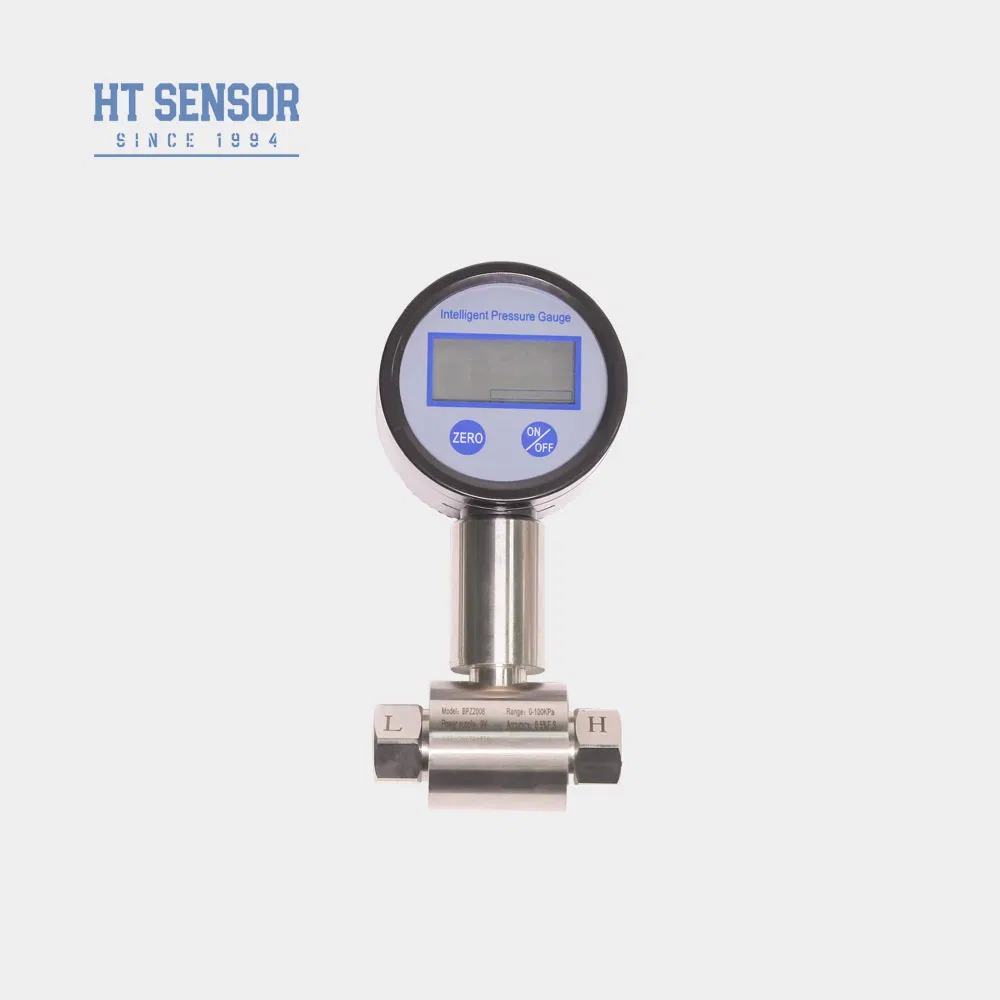

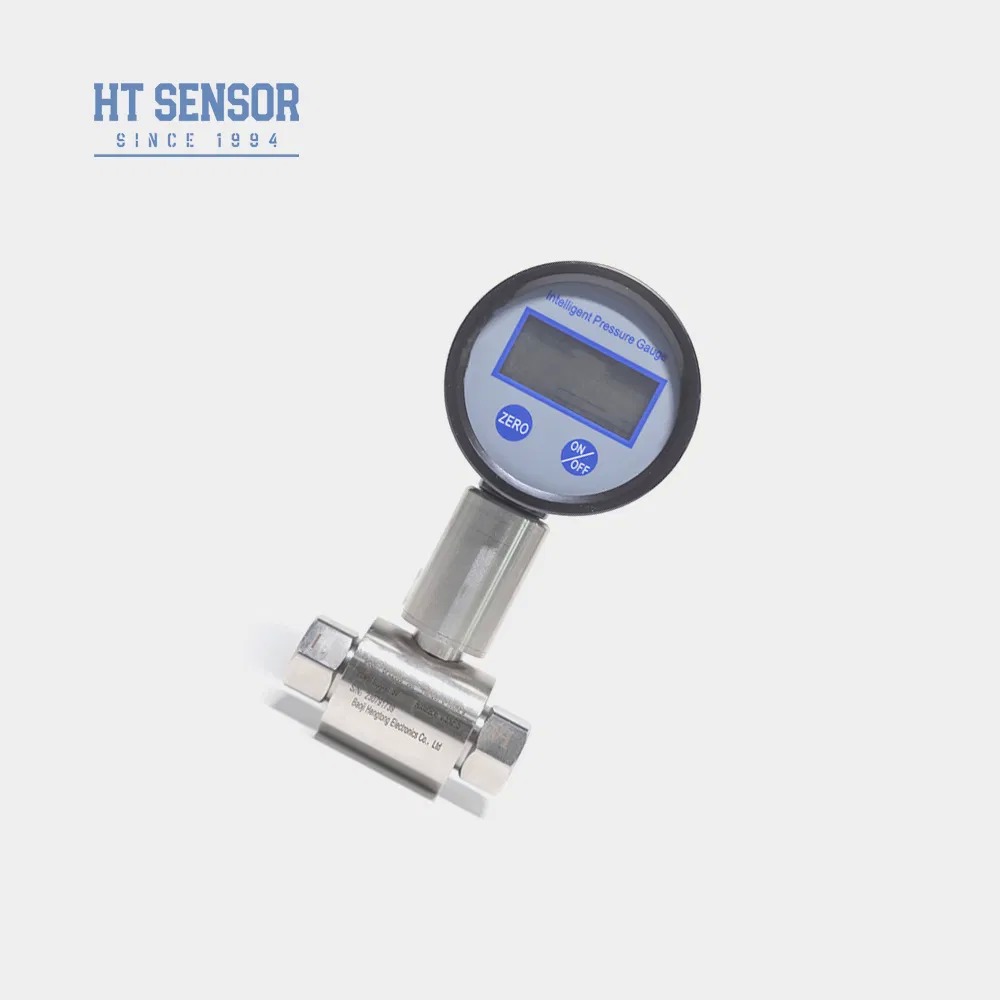

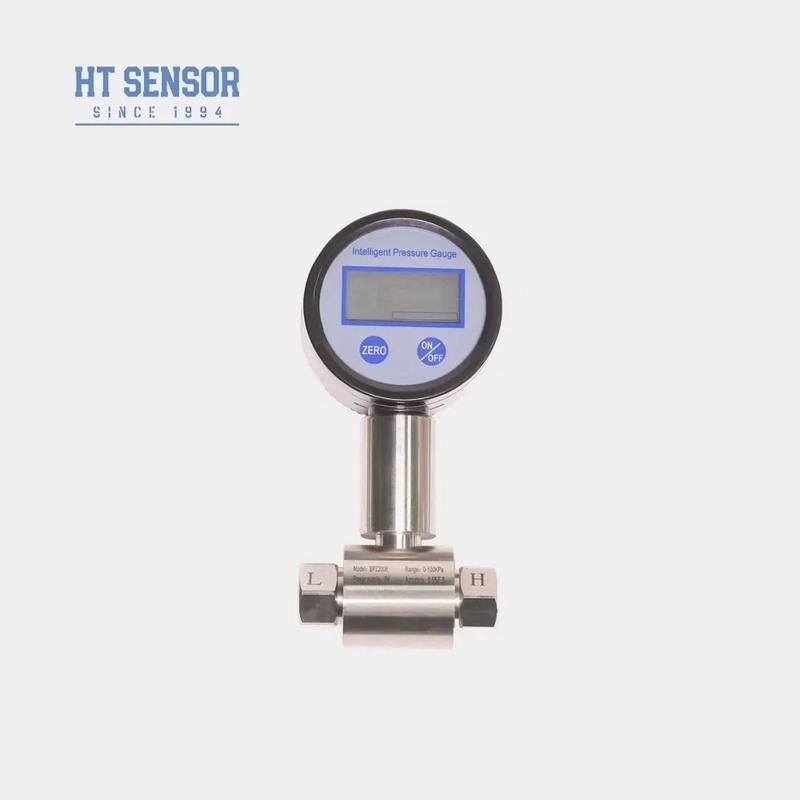

The BPZ2008 digital differential pressure gauge is a moisture-proof gauge with media isolation, designed for measuring non-corrosive gases and liquids. It utilizes a piezoresistive diffused silicon sensor and integrated circuit design, housed in a rust-resistant iron casing. The gauge features a 5-digit LCD display and offers high reliability and stability.
BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 0
Product  Features:
  1. 5-digit LCD display
  2. Powered by a 9V battery
  3. Selectable units of measurement: bar, psi, kg/cm2, KPa, MPa
  4. Peak hold and continuous reading functions
Applications:
Differential pressure measurement for various gases and liquids in industries such as petroleum, chemical, power, and hydrology for pipeline applications.

Performance Parameters
Measurement Range 0-10KPa...~4MPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of the rated range
Static pressure The minimum value between 5 times the rated range or 7 MPa
Power Supply 9V alkaline battery.
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability 0.1%FS
Hysteresis 0.1%FS
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Point Temperature Drift ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature -1ºC~49ºC
Storage Temperature -40ºC~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material ABS,1Cr18Ni9Ti
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Protection Rating IP65
Weight ~0.45kg
Outline Construction
Dimension BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 1

Ordering tips
  1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
  2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
  3. . During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
  4. . The 9V alkaline battery is not included in the product package. Please purchase it separately.
  5.  For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order.

company
BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 2BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 3BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 4BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 5BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 6BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 7BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 8BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge 9



Q&A
1.Q: What are the features of your pressure sensor transmitters?
   A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?
   A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?
    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
    A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote          instruction by PC network is always available.
