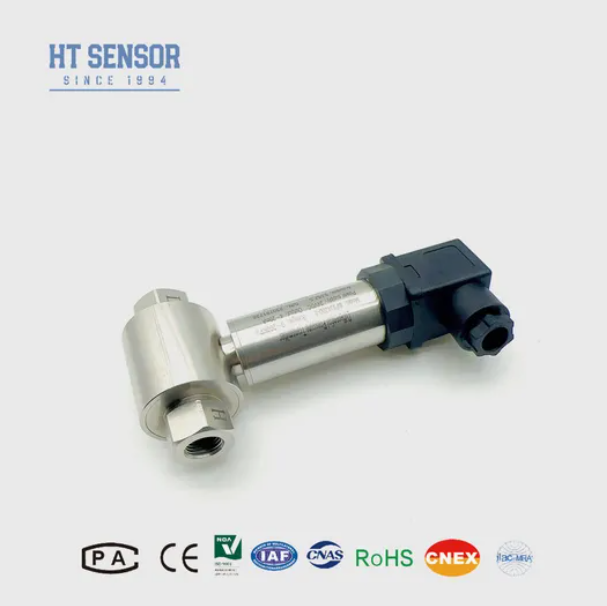

High Accuracy ±0.1% Differential Pressure Transmitter with Wide Temperature Range -40-85℃ and 300% Overload Pressure
Product Details
| انواع اندازه گیری: | فشار دیفرانسیل و فشار استاتیک | دقت: | 1 /0 ٪ از دهانه |
|---|---|---|---|
| دمای محیط: | - 40-85 ℃ | وزن: | 0.5 کیلوگرم |
| فشار بیش از حد: | 300%FS | دمای کار: | -20 ~ 150 ℃ |
| نوع فشار: | فشار | اتصال برق: | بلوک ترمینال ، کابل |
| دمای کار: | -10 تا 70 درجه سانتیگراد | رطوبت نسبی: | 5~98% RH |
| بندر فشار: | G1/4، G1/2 1/4NPT، 1/2NPT و دیگران | ولتاژ عرضه: | 24 (v) |
| نسبت دور زدن: | 100:1 | مدل شماره: | HT3351 |
| مواد مسکن: | الومینیوم | ||
| برجسته کردن |
High Accuracy Differential Pressure Transmitter,Wide Temperature Range Pressure Transmitter,300% Overload Pressure Transmitter,Wide Temperature Range Pressure Transmitter,300% Overload Pressure Transmitter |
||
Product Description
- Stainless steel construction for durability and easy installation
- Rigorous temperature compensation and aging screening ensure stable performance
- Flexible electrical interface options: plug-in or direct wiring
- Differential pressure measurement for gases/liquids in pipelines (petroleum, chemical, power, hydrology)
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation
- Pipeline and furnace chamber pressure measurement
| Measurement Range | 0-10KPa...~2MPa |
|---|---|
| Pressure Type | Differential Pressure |
| Accuracy @ 25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Operating Temperature | -30°C~80°C |
| Housing Material | 304, 316L stainless steel |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0.5~4.5V | 5VDC |
- Verify medium compatibility with product materials before selection
- Recommended installation with three-valve manifold for pressure regulation
- Position pressure interfaces horizontally for optimal performance
- Specify special requirements (vibration, EMI/RFI protection) when ordering
