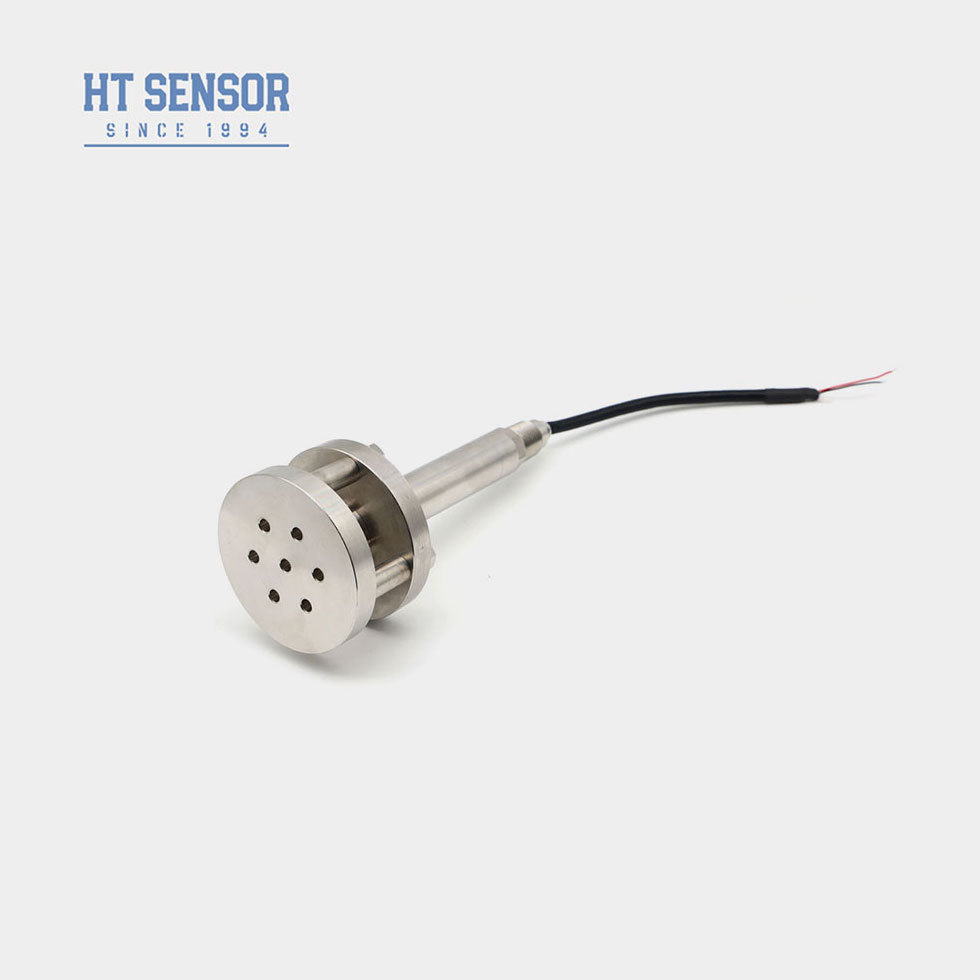

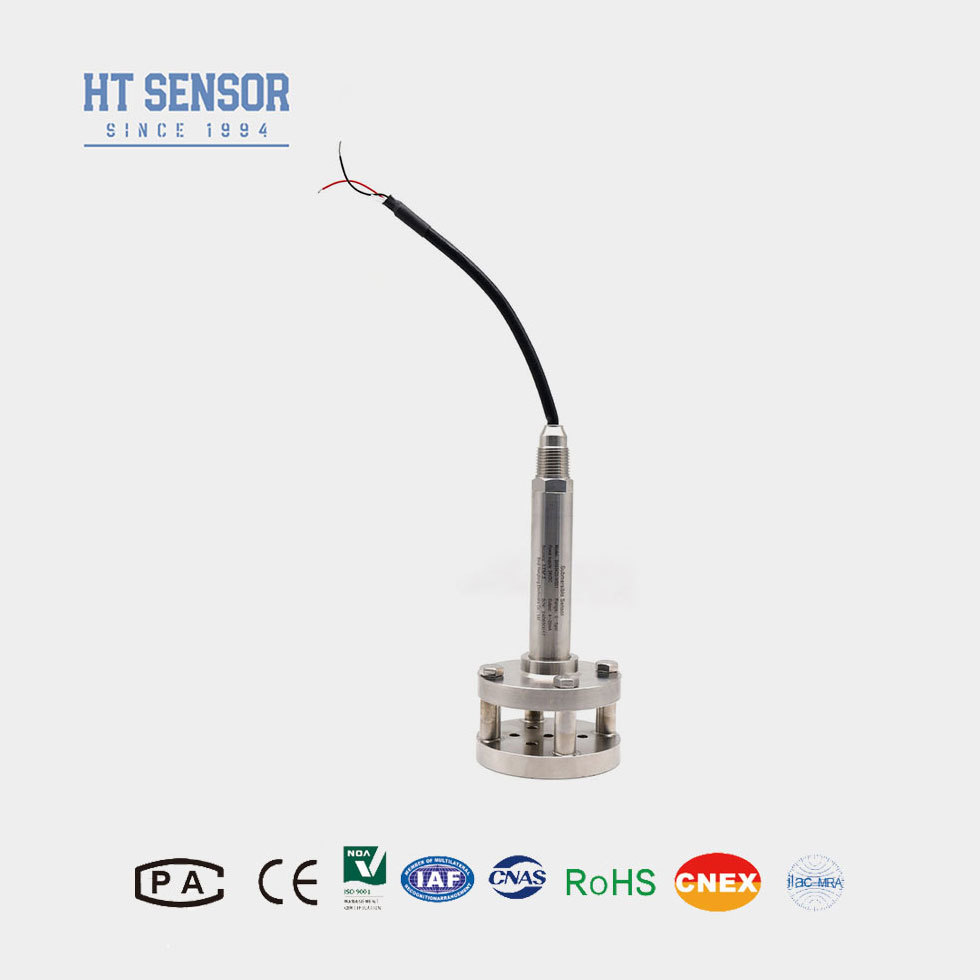

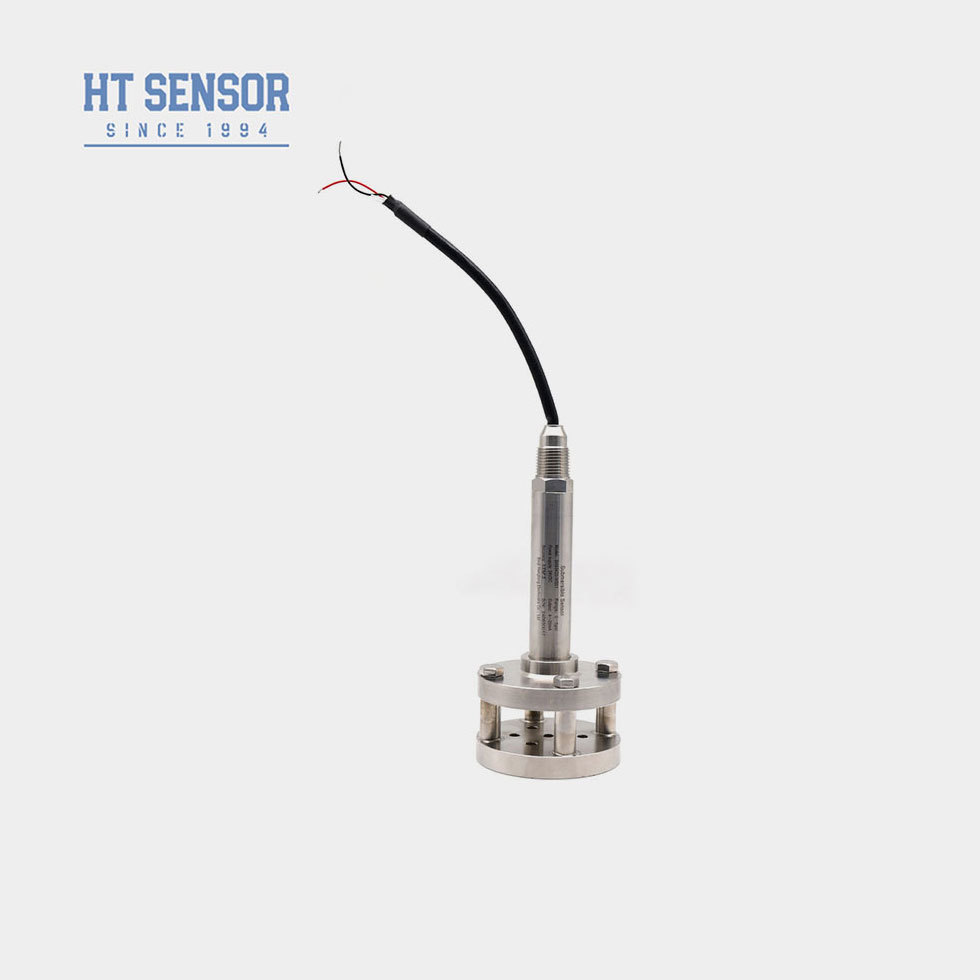

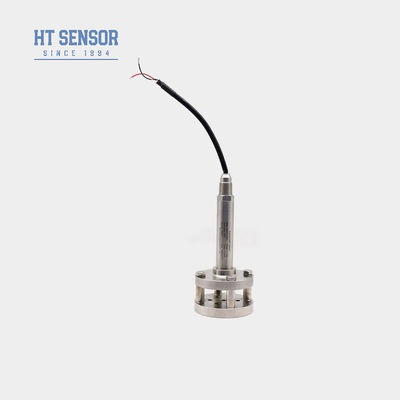

4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy
Product Details
| شماره شماره: | BH983420-WS | دامنه فشار: | فشار سنج ، فشار مطلق |
|---|---|---|---|
| درجه دقت: | 0.2٪0.5 درصد | رتبه IP: | IP68 |
| وزن خالص: | 2.1 کیلوگرم | مواد دیافراگم: | فولاد ضد زنگ 316L |
| مواد مسکن: | فولاد ضد زنگ 316L | ثبات: | ±0.1%FS/سال (نوع) |
| دامنه اندازه گیری: | 0-10 متر | ظرفیت اضافه بار: | ≤ 2x دامنه دارای امتیاز |
| دمای عملیاتی: | -20 ~ 100 درجه سانتیگراد | دمای ذخیره سازی: | -30 ~ 100 درجه سانتیگراد |
| مقاومت عایق: | > = 100mΩ@100vdc | درجه ضد انفجار: | ExiaIICT6 |
| سیگنال خروجی: | 4-20 میلی متر | دما: | -20 ~ 80 ℃ |
| مادی: | 304Sst ، 316Sst | کابل: | PTFE |
| نوع: | نوع سیلیکون پیزورسیستیو | سفارشی: | غیر سوار شده |
| رانش در مقیاس کامل: | 1.5 ٪ f.sr (تایپ) 2 ٪ fs (حداکثر) | نمایش: | ال سی دی |
| فشار روانی: | -0.02-0.1mpa | طراحی سازه: | نوع فلنج |
| سفارشی سازی: | OEM/ODM | مدل: | 1 |
| طول کابل: | 5 متر | کد HS: | 90261000 |
| برجسته کردن |
4-20mA sewage level sensor,IP68 water level transmitter,316L stainless steel level sensor,IP68 water level transmitter,316L stainless steel level sensor |
||
Product Description
The BH-WS Sewage Level Sensor is a high-performance liquid level transmitter designed for demanding industrial applications. Utilizing a precision piezoresistive silicon pressure sensor with full 316L stainless steel construction, this robust device delivers reliable measurements in contaminated liquid environments.
- Engineered for harsh industrial environments
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- Full 316L stainless steel construction for superior corrosion resistance
- Exceptional measurement accuracy and long-term stability
- Compatible with 316L stainless steel and non-corrosive liquids
- Fuel level monitoring in diesel tanks, fuel storage containers
- Liquid level measurement in polluted environments including:
- Sludge tanks and clarifiers
- Digesters and chemical storage tanks
- Sewage pits and water reservoirs
- Alum tanks and lime slurry systems
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 2X rated range |
| Accuracy @ 25°C | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~100°C |
| Housing Material | 316L Stainless Steel |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| Weight | ~2.1Kg (without cable) |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
Please ensure compatibility with your measured medium and specify density when ordering.
- For strong electromagnetic interference environments, please provide details
- Recommended to install lightning protection devices and ensure proper grounding
| Code | Description |
|---|---|
| BH-WS | Pressure Transmitter |
| D1 | 24VDC Power Supply |
| S1 | 4~20mADC Output |
| G | Gauge Pressure Type |
| C1 | PE Cable Material |
Product Highlights
