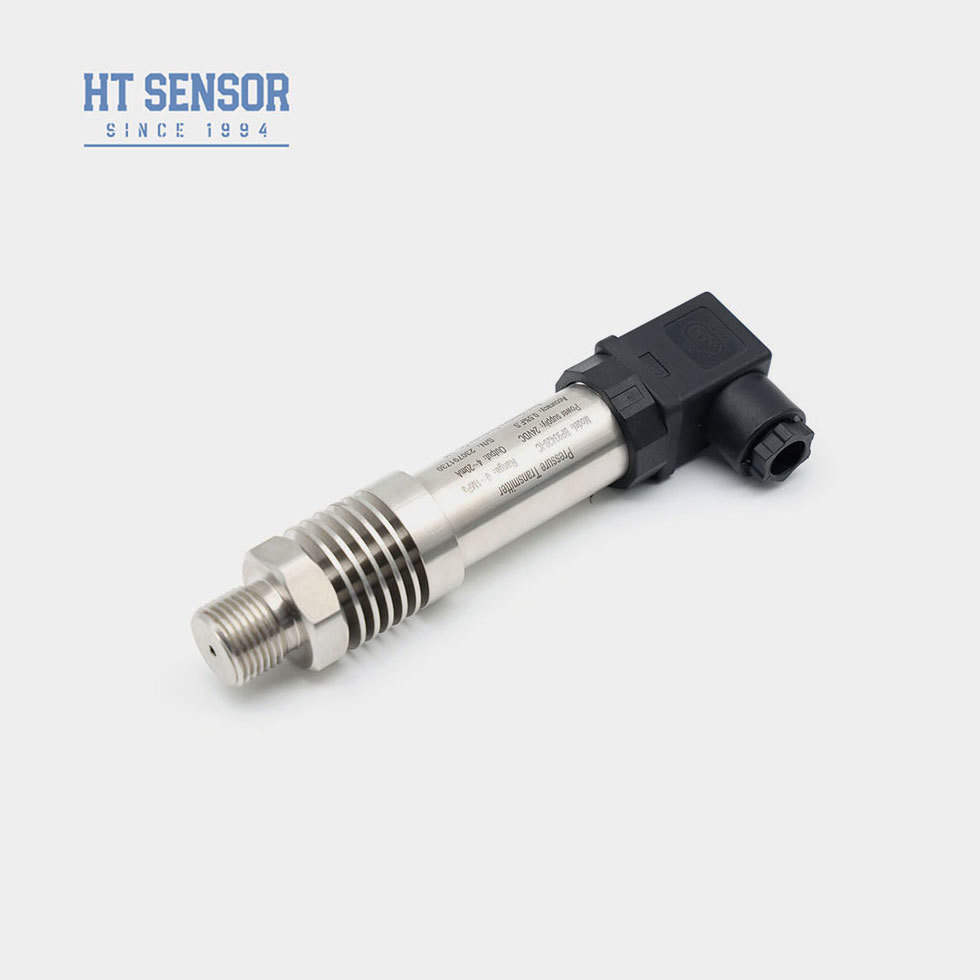

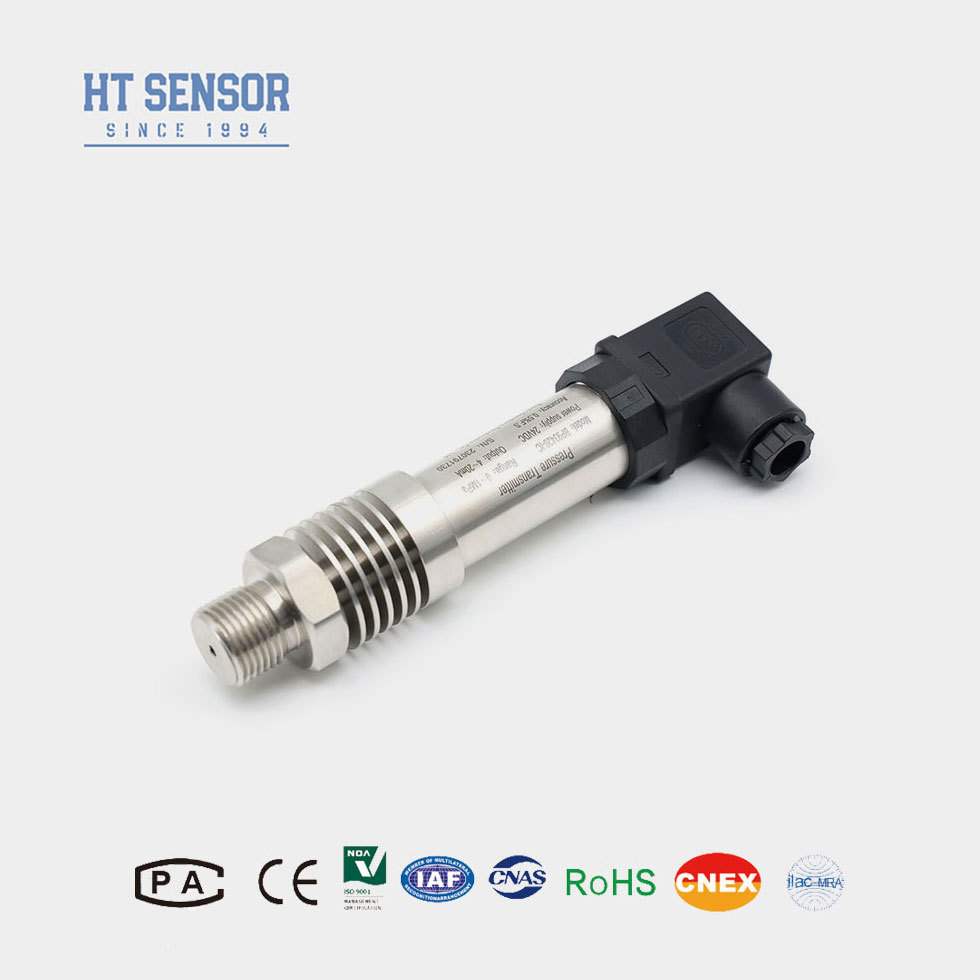

BP93420-IC 4-20mA Pressure Transmitter 0.5% Accuracy IP65
Product Details
| شماره شماره: | BP93420-IC | اندازه گیری محیط: | مایع |
|---|---|---|---|
| درجه دقت: | 0.5 ٪ | دامنه فشار: | -100kpa...0kpa ~10kpa...100MPa |
| رتبه IP: | IP65 | نوع فشار: | فشار اندازه گیری، فشار مطلق، فشار مهر و موم |
| مواد مسکن: | 316L | وزن: | ~0.4kg |
| بیش از حد: | 1.5 ≤ از محدوده دارای امتیاز | تکرارپذیری: | 0.1% FS |
| ثبات دراز مدت: | 0.1 ٪ fs در سال (معمولی) 0.2 ٪ fs در سال (حداکثر) | دمای عملیاتی: | -20 درجه سانتیگراد 150 درجه سانتیگراد |
| دمای ذخیره سازی: | -40 درجه سانتیگراد 120 درجه سانتیگراد | سیگنال خروجی: | 4 ~ 20mA ، 0 ~ 10/20mA ، 0/1 ~ 5V ، 0/1 ~ 10V ، 0.5 ~ 4.5 ولت ، RS485 |
| ولتاژ عرضه: | 12 ~ 30VDC ، 5VDC ، باتری 3.6 ~ 30 ولت / باتری | ||
| برجسته کردن |
4-20mA pressure transmitter IP65,industrial pressure sensor 0.5% accuracy,pressure transmitter with warranty,industrial pressure sensor 0.5% accuracy,pressure transmitter with warranty |
||
Product Description
- Wide measuring range with stainless steel construction
- Multiple pressure interface options available
- IP65 protection rating
- Adjustable zero and full-scale settings
- High precision measurement
- All stainless steel structure for durability
- Pressure measurement of non-corrosive gases and liquids (316L stainless steel compatible)
- Marine and aviation industries
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa...0kPa ~ 10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times of rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Operating Temperature | -20ºC~150ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Weight | ~0.3kg |
- Ensure medium compatibility with product contact parts
- Explosion-proof models don't include digital display heads
- Models with LCD/LED displays require ≥20VDC power supply
- Recommended to install lightning protection and ensure proper grounding
- Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
- Default cable: 1.5m polyethylene (other materials available on request)
- Specify special requirements (vibration, EMI/RFI, etc.) when ordering
| Order Guide | ||||||||
|
BP93420XX BPHT24 |
Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| I | With Cable | IX | Display Pressure Transmitter | |||||
| IB | Hirschmann Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter (2088) | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IC | High-temperature Pressure Transmitter | |||||
| IQ | 50.4mm Clamp Pressure Transmitter | IQT | 50.4mm Clamp High-temperature Pressure Transmitter | |||||
| Measurement Range | -0.1. . .0～0.01．．．100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | S8 | RS485 | |||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 1/2NPT | |||||||
| J5 | 1/4NPT | |||||||
| J6 | G1/2, Flush Structure | |||||||
| J7 | 50.4 clamp | |||||||
| J8 | 50.4 clamp with Heat Sink | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
Product Highlights
BP93420-IC Pressure Transmitter Product Overview The BP93420-IC is a high-temperature pressure transmitter featuring an advanced HT series silicon pressure-resistance isolation oil-filled core. Its specialized heat dissipation structure efficiently captures medium pressure, making it ideal for ...
