BH93420-III Advanced Water Level Transmitter for Industrial Applications
Product Details
| شماره شماره: | BH93420-III | دامنه فشار: | 0-1m-400Mh2o |
|---|---|---|---|
| نوع نمایش: | رهبری منجر به | درجه دقت: | 0.1٪، 0.25٪ |
| رتبه IP: | IP68 | وزن خالص: | 1.6 کیلوگرم |
| مواد دیافراگم: | فولاد ضد زنگ 316L | دامنه اندازه گیری: | 0 ~ 10m… 400MH2O |
| نوع فشار: | فشار اندازه گیری، فشار مطلق، فشار مهر و موم | بیش از حد: | ≤ 2x دامنه دارای امتیاز |
| دقت @ 25 درجه سانتیگراد: | 0.1 ٪ ((تایپ) 0.2 ± (حداکثر) | دمای عملیاتی: | -20 تا 80 درجه سانتیگراد |
| دمای ذخیره سازی: | -30 ~ 100 درجه سانتیگراد | مواد مسکن: | آلومینیوم ریخته گری ، فولاد ضد زنگ 1cr18ni9ti |
| سیگنال خروجی: | 4 ~ 20mA با هارت | ||
| برجسته کردن |
HT Sensor water level transmitter IP68,BH93420-III water level sensor 0.1% accuracy,submersible water level transmitter with warranty,BH93420-III water level sensor 0.1% accuracy,submersible water level transmitter with warranty |
||
Product Description

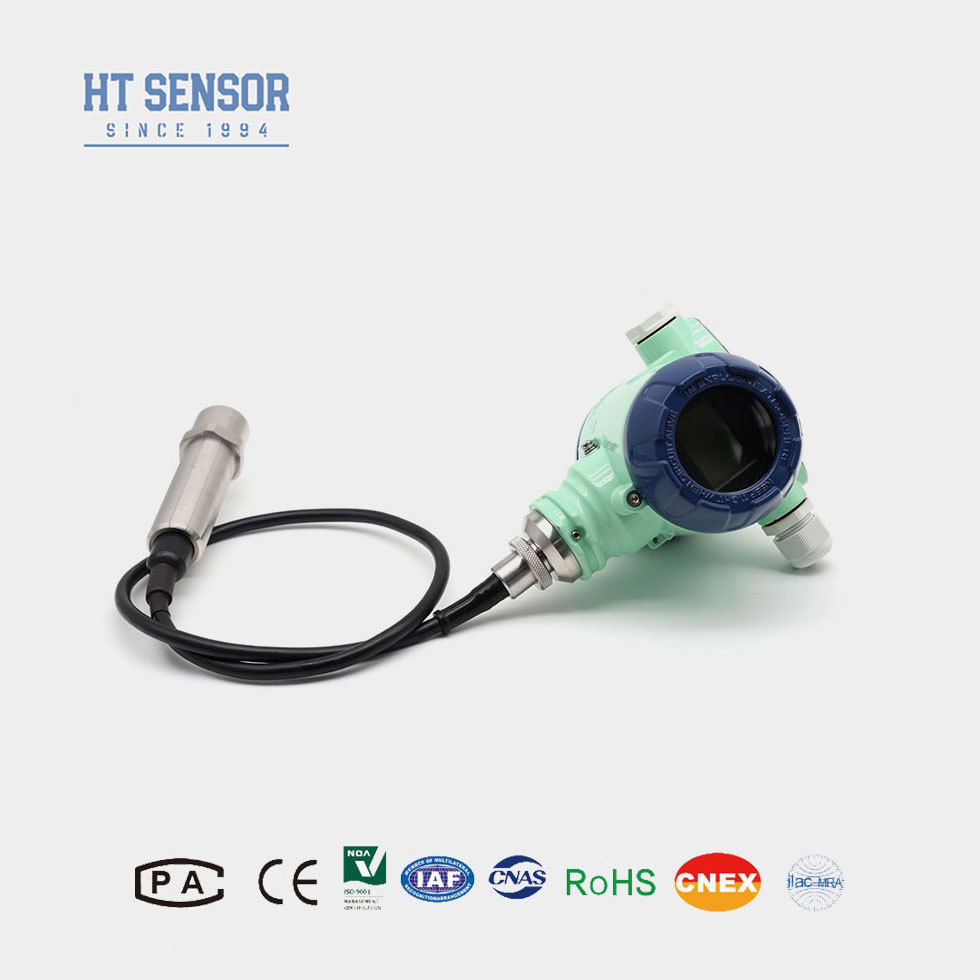

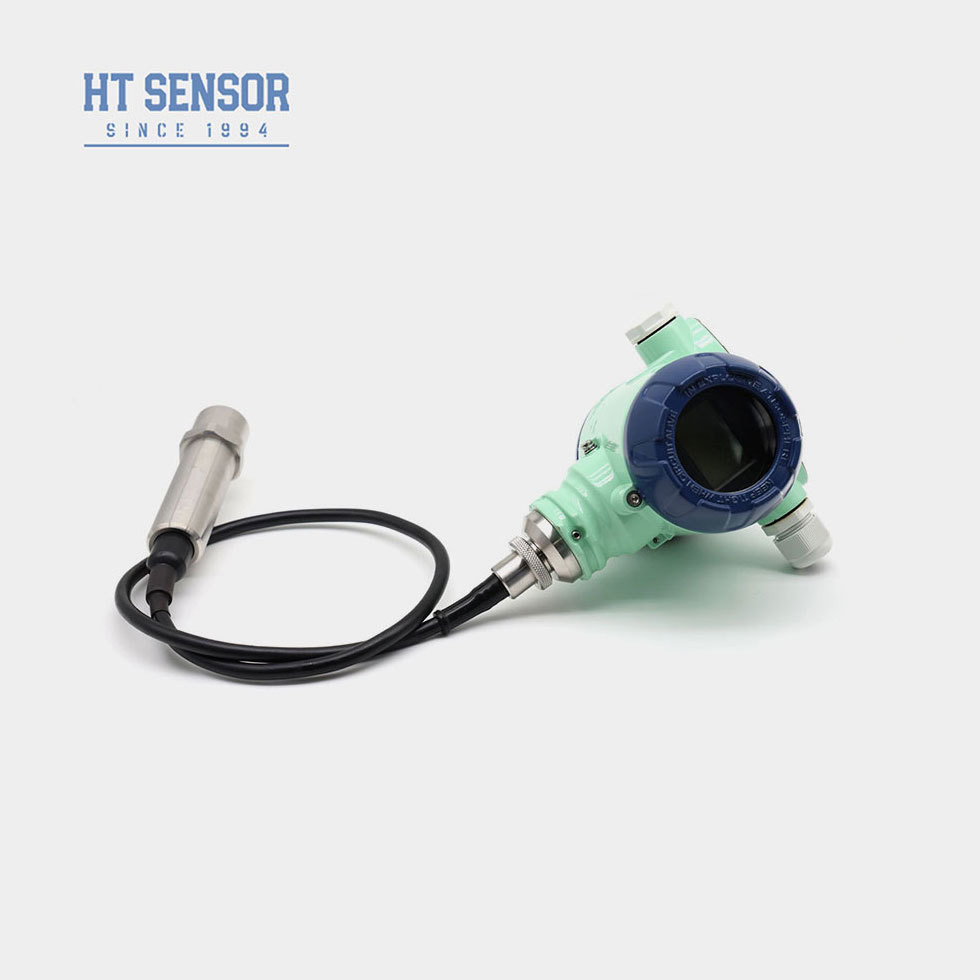

The BH93420-III insertion-type intelligent water level transmitter features a high-precision piezoresistive silicon pressure sensor for measuring static pressure proportional to liquid level. Utilizing HART communication protocol, it enables digital signal transmission and two-way communication.
- HART communication protocol output with display capability
- High accuracy (±0.1%) with excellent stability
- Explosion-proof rating: ExiaIICT6
- High protection level: IP68
- Multiple cable options: PE, PTFT, PU
- Versatile structures to meet various on-site requirements
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
Please ensure compatibility with measured medium and specify density when ordering.
