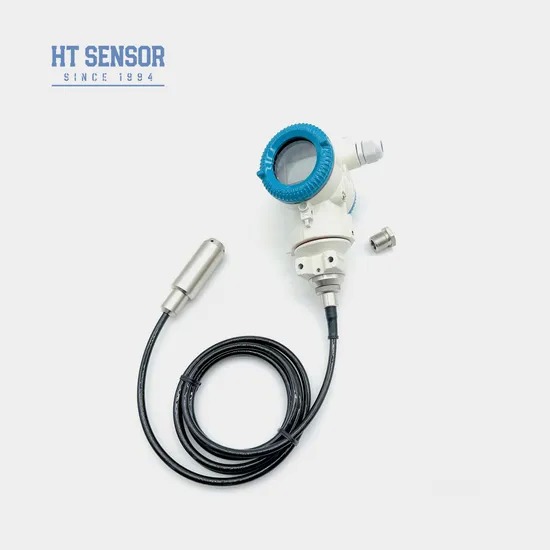

BH93420-I IP68 Water Level Transmitter 4-20mA Output 0-10m Range
Product Details
| شماره شماره: | BH93420-I | سیگنال خروجی: | 4-20 Ma یا RS485 |
|---|---|---|---|
| رتبه IP: | IP68 | وزن خالص: | 0.3 کیلوگرم |
| مواد دیافراگم: | فولاد ضد زنگ 316L | دقت: | 0.5% FS |
| دامنه اندازه گیری: | 0-10kpa ~ 200 میلیون | دمای عملیاتی: | -20 تا 80 درجه سانتیگراد |
| دمای ذخیره سازی: | -30 ~ 100 درجه سانتیگراد | مواد مسکن: | 1Cr18Ni9Ti |
| مقاومت عایق: | > = 100mΩ@100vdc | درجه ضد انفجار: | ExiaIICT6 |
| امتیاز محافظت: | IP67، IP68 | مهر و موم اورینگ: | لاستیک |
| ماده کابل: | پلی اتیلن ، پلی اورتان | ||
| برجسته کردن |
IP68 water level transmitter 4-20mA,water level transmitter 0-10m range,4-20mA output water level sensor,water level transmitter 0-10m range,4-20mA output water level sensor |
||
Product Description
- Full stainless steel housing, suitable for various testing environments

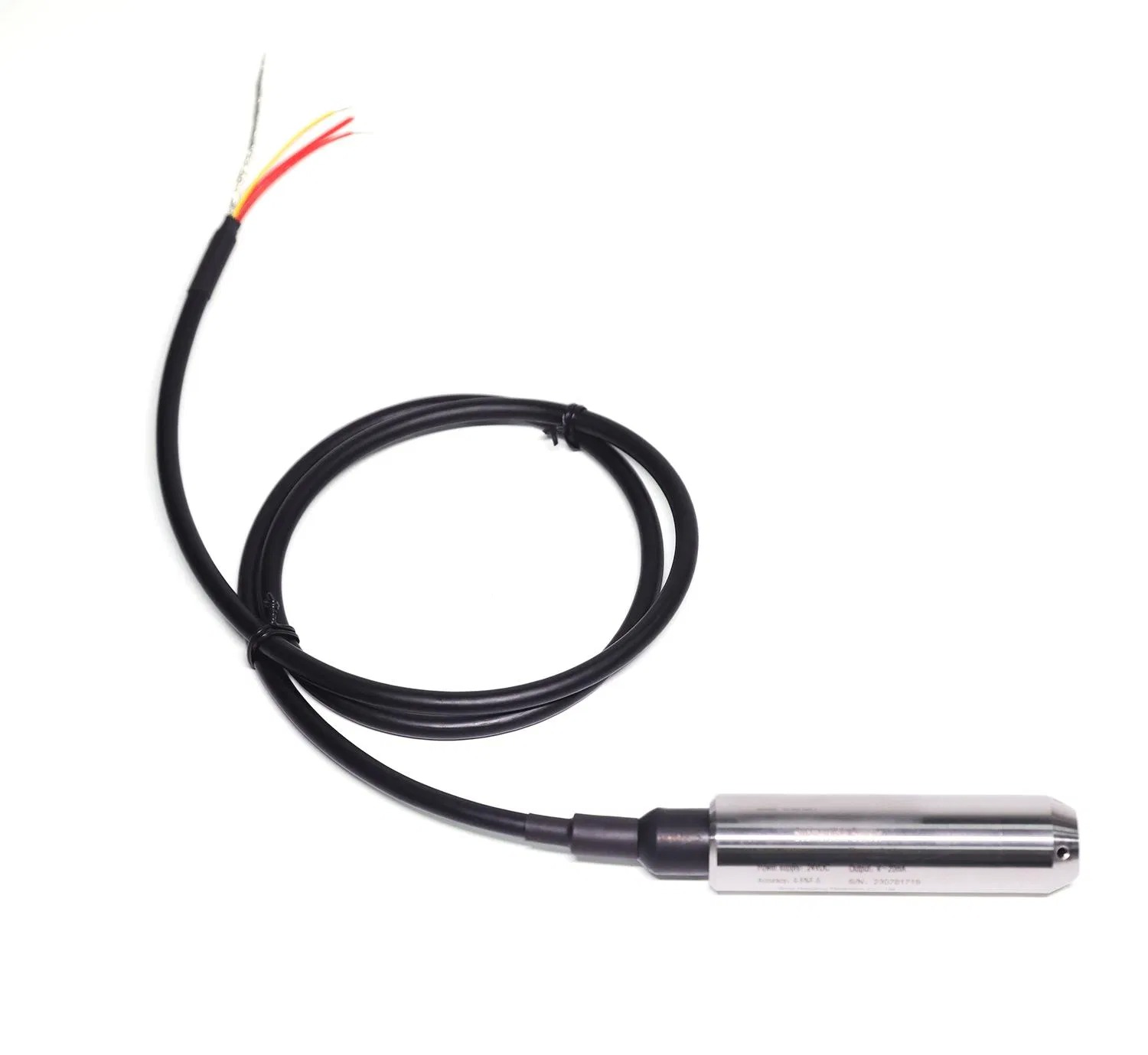

- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof marking: ExiaIICT6
- High protection rate: IP68
- PE or PU cable options
- Compatible with 316LSS and non-corrosive liquids
- Monitoring water levels in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Measuring fuel levels in diesel and fuel tanks
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V | ||
| RS485 Communication Protocol |
- Ensure the measured medium is compatible with product components
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference, provide details
- Install lightning protection devices and ensure proper grounding
| Code | Option |
|---|---|
| BH93420-I | Pressure Transmitter |
| Measurement Range | 0~10m...400m |
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S2: 1~5VDC | S3: 0~5VDC | S4: 0~10mADC | S5: 0~20mADC | S6: 0~10VDC | S7: 0.5~4.5VDC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
Product Highlights
BH93420-I Submersible Liquid Level Transmitter The BH93420-I is a submersible liquid level transmitter that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, it offers excellent ...
