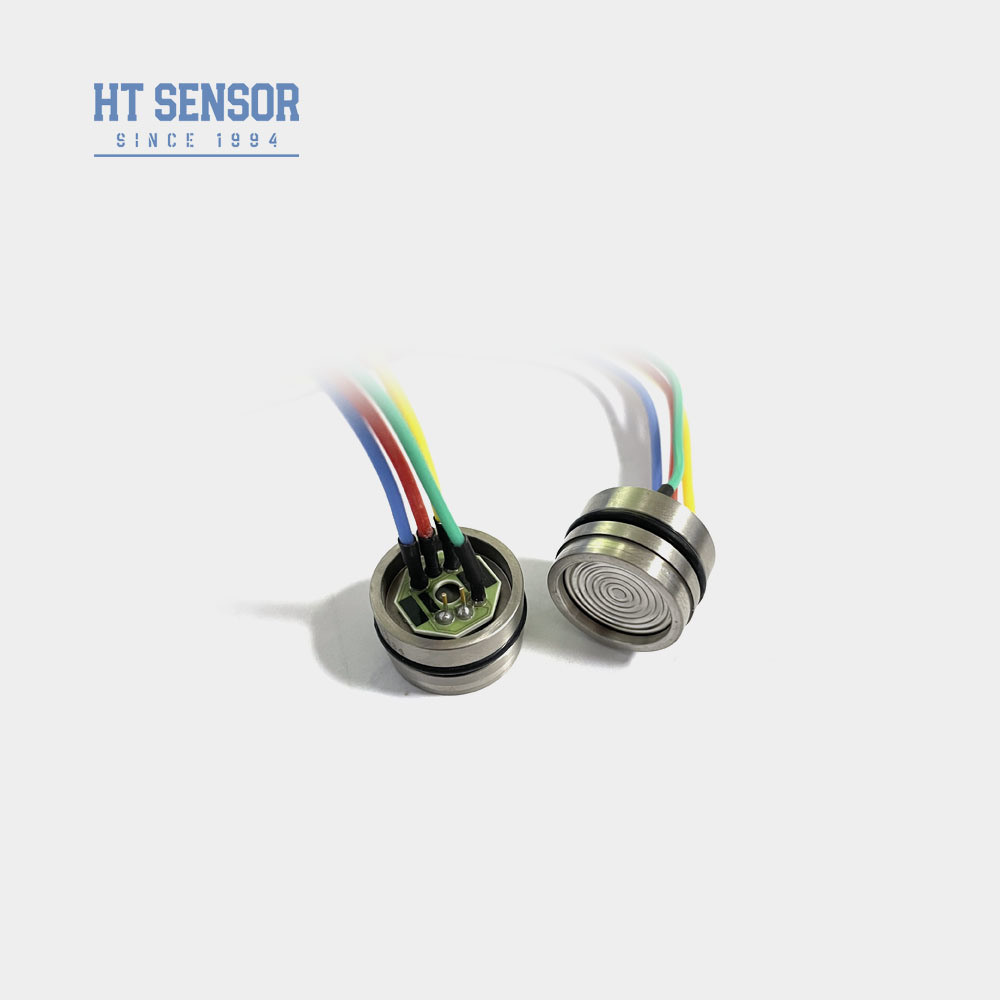

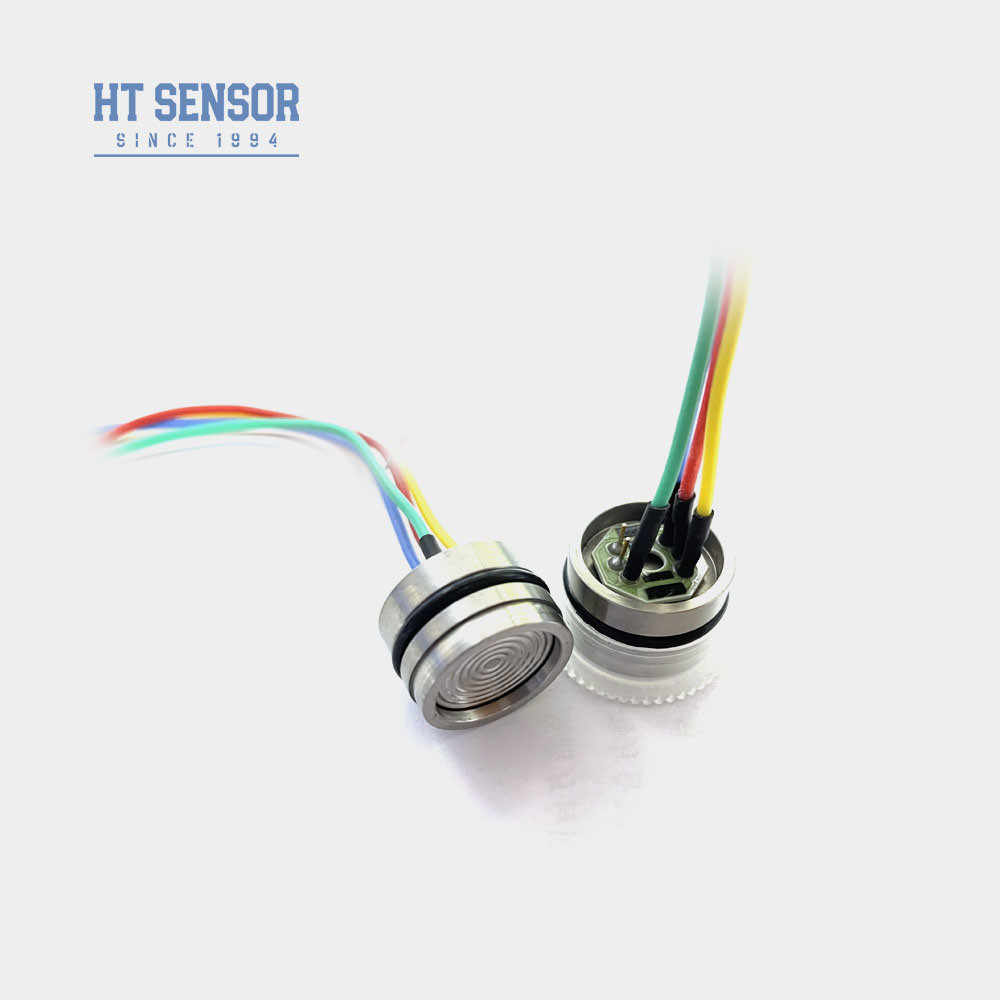

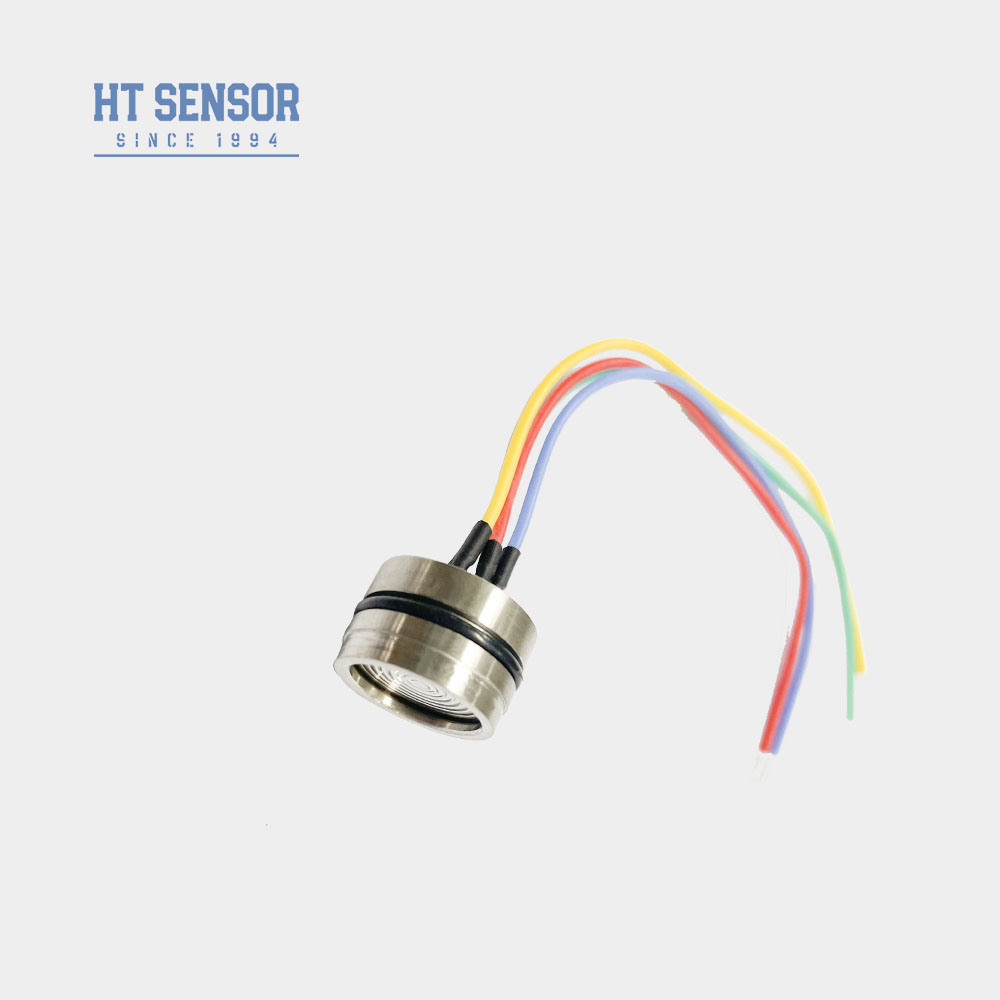

100mbar 19mm Compact Conventional Pressure Sensor Core
HT19 Silicon Piezoresistive Pressure Sensor

Introduction:
HT19 is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon sensing element. It accurately measures the pressure of liquids and gases by transmitting medium pressure to the silicon diaphragm through an isolation diaphragm and silicone oil. With its compact size, high accuracy, and cost-effectiveness, this versatile sensor is widely used in applications such as air compressors and refrigeration systems.

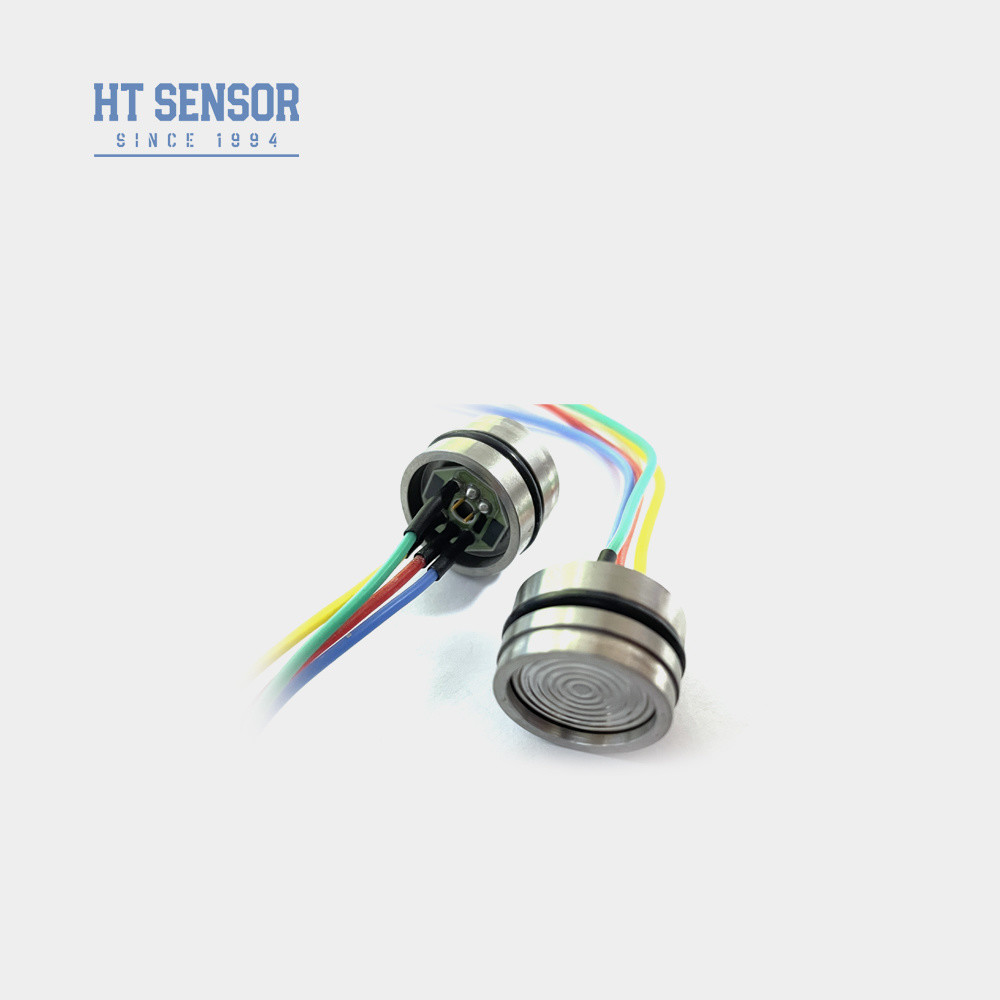

100mbar 19mm Compact Conventional Pressure Sensor Core 0
Product  Features:
1.Utilizing advanced technology and 316L stainless steel housing, along with  materials such as titanium and Hastelloy for the diaphragm
2.Employing thick-film circuits for temperature compensation and zero-point  correction
3.outstanding reliability, repeatability, and stability
Applications:
1.Suitable for measuring non-corrosive gas and liquid pressure with 316L  stainless steel compatibility
2.Applied in various industrial process sites, including petroleum, chemical, metallurgy, power, and hydrology
3.Used in marine and aviation industries
4.Suitable for hydraulic and pneumatic control systems
5.Utilized in process control applications
Electrical performance:
1.Power Supply: ≤2mA DC (Typical 1.5mA DC)
2.Input Impedance:3KΩ~6KΩ
3.Output Impedance:2.5KΩ~6KΩ
4.Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires.
Performance Parameters:
Range Gauge(G) 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS,7MPaS,10MPaS,20MPaS
  Typ Max Unit
Nonlinearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero  Output   0±1 0±2 mV
Span Output   ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Temperature Error-Zero ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Temperature Error-Span ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile ring or Fluoro ring
Filling Medium Silicon Oil
Weight about 20g
The parameters are tested under the following conditions:    1.5mA @ 25°C

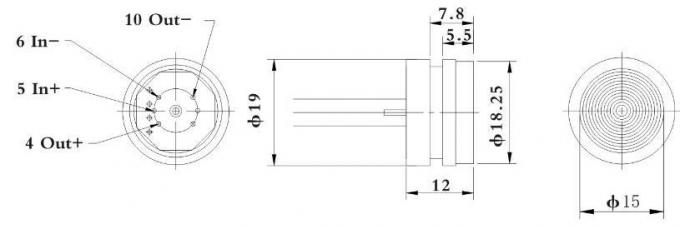

Outline Construction
type1 100mbar 19mm Compact Conventional Pressure Sensor Core 1

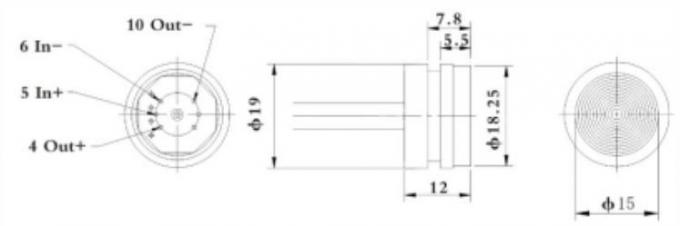

type2 100mbar 19mm Compact Conventional Pressure Sensor Core 2

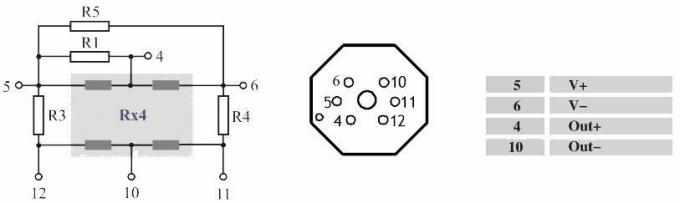

Electrical connection and compensation




100mbar 19mm Compact Conventional Pressure Sensor Core 3





100mbar 19mm Compact Conventional Pressure Sensor Core 4100mbar 19mm Compact Conventional Pressure Sensor Core 5

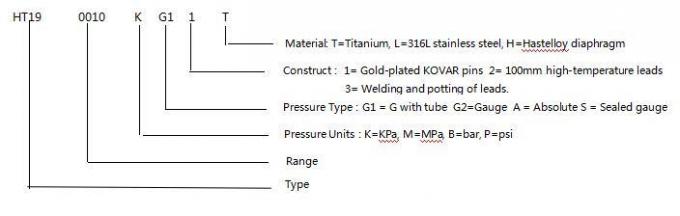

Selection Examples
100mbar 19mm Compact Conventional Pressure Sensor Core 6



Ordering tips

1. Core-to-Housing Fit: Ensure the core size is compatible with the transmitter housing prior to assembly to achieve the required level of airtightness.

2. Housing Assembly: During assembly, maintain vertical alignment of the housing and apply even, controlled pressure to prevent jamming or damage to the compensation plate.

3. Media Compatibility: Verify that the measured medium is chemically compatible with the core diaphragm and housing material (316L stainless steel). If compatibility is not guaranteed, you must provide special instructions at the time of order placement.

4. Diaphragm Protection: Never touch the sensor diaphragm with fingers or sharp objects. The diaphragm is extremely sensitive and can be permanently damaged by deformation or piercing.

5. Gauge Pressure Reference: For gauge pressure cores, the pressure port must remain open to atmospheric pressure. Take care to prevent moisture, water vapor, or any corrosive media from entering the negative pressure chamber.

6. Electrical Connections: Always refer to the wiring label attached to the actual core for pin lead connections. Do not rely on external documentation if the pin configuration has been modified.
